8 Frame Cassette Extractor - Fully Programmable
+5
+4
+3
+2

8 Frame Cassette Extractor - Fully Programmable

SKU W201601
$7 854.00
Price incl. GST (10%) $714.00
Buy and save
Buy and earn $7.85 Loyalty for your next purchase
Loyalty is a discount program that lets you buy products and earn points to redeem on your next purchase. Your Loyalty balance is updated when you pay online or in-store. The Loyalty amount shown on this page can be recalculated at the checkout.
In stock
Product Details
Brand: LYSON

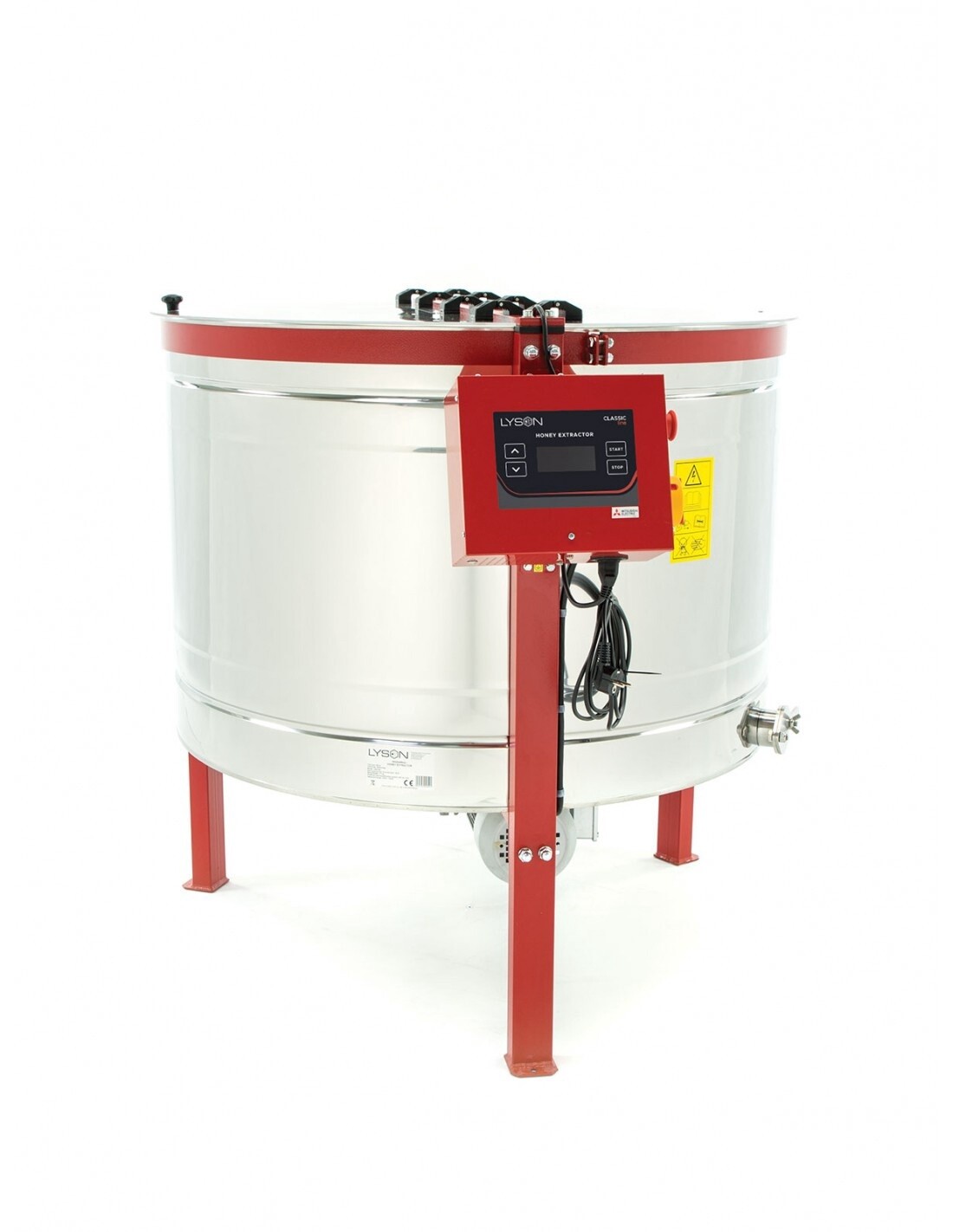

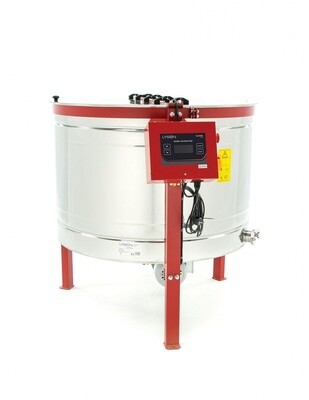

Cassette honey extractor, Ø1000mm, 8 x Langstroth, electric drive, CLASSIC LINE. Automatic controller.

Specifications:

Product line CLASSIC
Honey extractor type Cassette
Drum diameter Ø1000 mm
Power 230V
Frive Electric, bottom mounted motor
Contoller HE-02N
Power 0.55kW geared motor
Thickness of drum wall 0.6 mm
Thickness of plexiglass lid 4 mm
Valve 2 x Stainless 2"
Top bar A flat bar 60 × 10 mm, powder coated
Legs Powder coated 60 x 40 mm
Hinges Plastic, 8 pcs
Drum height 730 mm
Drum support Powder coated
Strengthening cross Powder coated
Stainless steel rod Ø2 and Ø5 mm

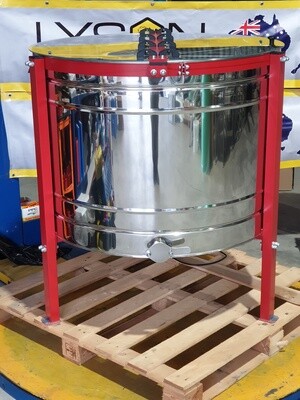

Shipped Crated on Pallet
Guarantee

Guarantee 5 years

Guarantee for electrical components, controller, motor and drive components 2 years

Honey extractors are designed for larger apiaries. They are characterized by a small number of cassettes in the basket of honey extractors, but for this they are very efficient during centrifugation. The spinning cycle takes place in two directions, and thanks to the guides used, there is no need to manually move the cassettes and the possibility of blocking them.

Construction

The drum is made of acid-proof stainless steel, properly reinforced and stiffened, equipped with a trigger.

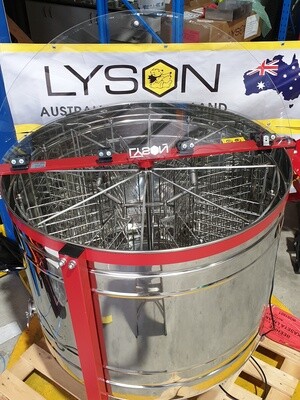

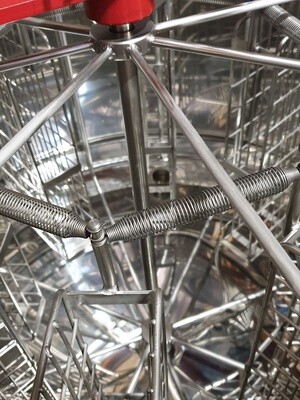

Cassette basket made of stainless steel rods, equipped with cassettes, the construction of which allows the frames to be protected against breaking the patches. The cassettes are connected with each other by means of springs that allow them to return to the starting position. The basket is additionally mounted in two mounts: top and bottom.

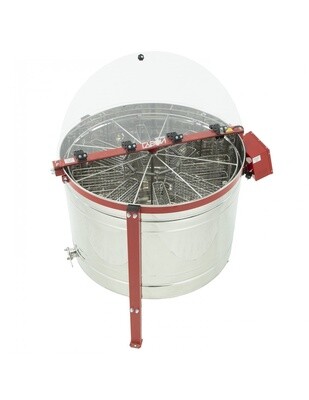

Transparent covers made of metaplex, giving the opportunity to observe the spin process without having to open them and expose them to the danger of contact with the rotating basket.

As standard, we add special pads to the honey extractors to increase the comfort and safety of bee-keeping. Thanks to them, the vibrations of the honey extractors during honey spin are minimized.

The pads are made of PVC (SOFT) material. Very often spinning frames of different weights due to the different amounts of honey they contain. By using LYSON pads you ensure the highest quality of device optimization.

The automatic control has eight programs. The first two programs are designed to work in manual mode, the third program - automatic, have factory settings. Programs from 4 to 8 (automatic) allow you to enter your own settings. Each program consists of 7 steps. At each step, you can set three parameters - step start time, set speed and direction of rotation. The seventh, last step defines the time of stopping the basket of honey extractor.
